SPECIFICATIONS
|
Small Sample Spindles and Chambers
|
|
Spindle
|
SHEAR RATE
|
SAMPLE
VOLUME
|
|
SC4-18
|
1.32 N
|
6.7 mL
|
|
SC4-31
|
0.34 N
|
9.0 mL
|
|
SC4-34
|
0.28 N
|
9.4 mL
|
|
SC4-16
|
0.29 N
|
4.2 mL
|
|
SC4-25
|
0.22 N
|
16.1 mL
|
|
SC4-21 **
|
0.93 N
|
7.1 mL
|
|
SC4-27 **
|
0.34 N
|
10.4 mL
|
|
SC4-15
|
0.48 N
|
3.8 mL
|
|
SC4-28 **
|
0.28 N
|
11.0 mL
|
|
SC4-29 **
|
0.25 N
|
13.5 mL
|
|
SC4-14
|
0.40 N
|
2.1 mL
|
|
SC4-DIN-82
|
1.29 N
|
1.5 mL
|
|
SC4-DIN-83
|
1.29 N
|
1.5 mL
|
|
CHAMBER
|
TYPE
|
|
SC4-13R
|
Sample Chamber w/o temperature probe
|
|
SC4-13RPY
|
Sample Chamber w/RTD temperature probe & cable
|
|
SC4-8R
|
Sample Chamber w/o temperature probe
|
|
SC4-8RPY
|
Sample Chamber w/RTD temperature probe & cable
|
|
SC4-7R
|
Sample Chamber w/o temperature probe
|
|
SC4-7RPY
|
Sample Chamber w/RTD temperature probe & cable
|
|
SC4-6R
|
Sample Chamber w/o temperature probe
|
|
SC4-6RPY
|
Sample Chamber w/RTD temperature probe & cable
|
|
SC4-13RD-100 †
|
Sample Chamber-Disposable, aluminum, 100 units
|
Note: Spindle/chamber ranges are shown on our
Small Sample Adapter product page.

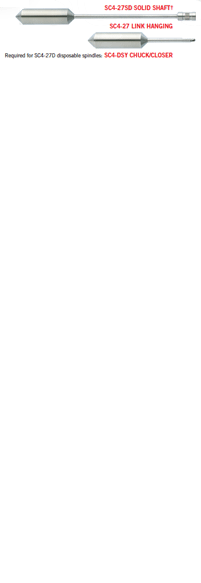

** Solid shaft option available for spindles SC4-21 (Part No. SC4-21SD),
SC4-27 (Part No. SC4-27SD), .SC4-28 (Part No. SC4-27SD) and
SC4-29 (Part No. SC4-29SD)
† Requires the use of special water jacket SC4-45YD
