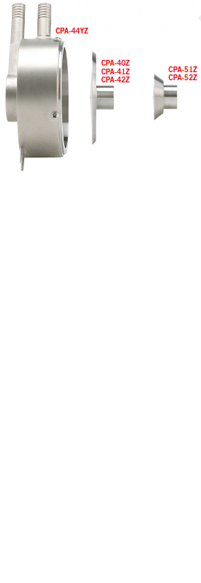

Wells/Brookfield Spindles & Cups
|
|
MODEL
|
SHEAR
RATE
|
SAMPLE
VOLUME
|
CONE
ANGLE
|
CONE
RADIUS
|
|
CPA-40Z/ CPM-40Z |
7.50N sec-1
|
.5 mL
|
.8 °
|
2.4 cm
|
|
CPA-41Z/ CPM-41Z |
2.00N
|
2.0 mL
|
3 °
|
2.4 cm
|
|
CPA-42Z/ CPM-42Z |
3.84N
|
1.0 mL
|
1.5 °
|
2.4 cm
|
|
CPA-51Z/ CPM-51Z |
3.84N
|
.5 mL
|
1.5 °
|
1.2 cm
|
|
CPA-52Z/ CPM- 52Z |
2.00N
|
.5 mL
|
3 °
|
1.2 cm
|
|
CUP
|
|
|
|
|
|
CPA-44Y
|
Standard cup without temperature probe
|
|
CPA-44PY
|
Standard cup with RTD temperature probe
|
|
PCPA-3Y
|
Cup with 1 purge fitting
|
|
PCPA-6Y
|
Cup with luer fitting and 1 purge fitting
|
|
PCPA-4Y
|
Cup with luer fitting and 2 purge fittings
|
|
PCPA-7Y
|
Cup with luer fitting and 4 purge fittings
|
Note: Wells-Brookfield cones and cups are calibrated at the factory.
Cones ordered after shipment require cups to be returned for calibration to
new cone.
