SPECIFICATIONS
|

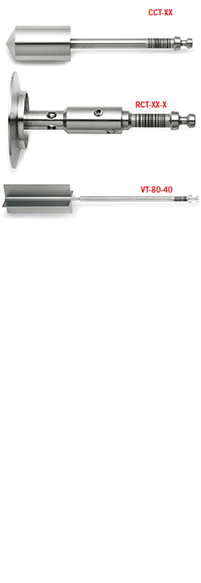

RST Spindle
|
RS Rheometers with serial numbers beginning with “302” and “303” use different spindles. Call for details.
|
|
SPINDLE
|
VISCOSITY RANGE
|
SHEAR RATE
|
MAX. SHEAR STRESS
|
SAMPLE VOLUME
|
|
COAXIAL
|
Pa•s
|
sec-1
|
Pa
|
mL
|
|
CCT-DG
|
0.00005-4.07K
|
0.043-5.64K
|
177
|
15.7
|
|
CCT-40
|
0.0003-27.6K
|
0.0215-2.79K
|
594
|
68.5
|
|
CCT-25
|
0.002-177K
|
0.013-1.67K
|
2.28K
|
16.8
|
|
CCT-14
|
0.012-1M
|
0.013-1.68K
|
13K
|
3.4
|
|
CCT-8
|
0.065-5.41M
|
0.013-1.672K
|
69.6K
|
1.0
|
|
CONE
|
Pa•s
|
sec-1
|
Pa
|
mL
|
|
RCT-25-1
|
0.005-407K
|
0.06-7.8K
|
24.4K
|
0.1
|
|
RCT-25-2
|
0.01-814K
|
0.03-3.9K
|
24.4K
|
0.2
|
|
RCT-50-1
|
0.0006-50.9K
|
0.06-7.8K
|
3.05K
|
1.0
|
|
RCT-50-2
|
0.0012-101K
|
0.03-3.9K
|
3.05K
|
2.0
|
|
RCT-75-1*
|
0.0002-15K
|
0.06-7.8K
|
905
|
2.5
|
|
RCT-75-2*
|
0.0004-30K
|
0.03-3.9K
|
905
|
5.0
|
|
PLATE
|
Pa•s
|
sec-1
|
Pa
|
mL
|
|
RPT-25
|
0.03-2.49M
|
0.013-1.7K
|
32.6K
|
0.5
|
|
RPT-50
|
0.002-155K
|
0.027-3.4K
|
4.07K
|
2.0
|
|
RPT-75*
|
0.0004-30.7K
|
0.04-5.1K
|
1.2K
|
4.5
|
VANE
SPINDLE
|
VANE LENGTH
(mm)
|
VANE DIAMETER
(mm)
|
SHEAR STRESS
(Pa)
|
|
VT-10-5
|
10
|
5
|
330-210K
|
|
VT-20-10
|
20
|
10
|
41-27K
|
|
VT-20-20
|
20
|
20
|
9-5.9K
|
|
VT-30-15
|
30
|
15
|
12-8K
|
|
VT-40-20
|
40
|
20
|
5.2-3.4K
|
|
VT-40-40
|
40
|
40
|
1.2-740
|
|
VT-50-25
|
50
|
25
|
2.7-1.7K
|
|
VT-60-8
|
60
|
8
|
24-15K
|
|
VT-60-15
|
60
|
15
|
7-4.3K
|
|
VT-60-30
|
60
|
30
|
1.6-1K
|
|
VT-80-40
|
80
|
40
|
0.7-420
|
|
VT-80-70
|
80
|
70
|
0.2-120
|
*For use with water bath version only. 1 Pa · s = 1,000 cP K = 1 thousand M = 1 million
Note: 1. Values based on minimum speed of 1 RPM and maximum speed of 1000 RPM
2. 75 mm plates cannot be used with Peltier Plate or electrically heated rheometers
